Rotary Kiln vs Tunnel Kiln: Technical Differences & Industry Uses

Industrial thermal processing is the backbone of sectors ranging from construction materials to chemical manufacturing. When selecting a continuous firing system, engineers and project managers primarily evaluate two dominant architectures: the rotary kiln and the tunnel kiln. While both systems aim to achieve precise chemical and physical transformations through high temperatures, their mechanical logic and material handling methods are fundamentally different.

The choice between a rotary kiln vs tunnel kiln depends on the physical state of the raw material and the required uniformity of the thermal cycle. Understanding these kiln type comparisons is essential for optimizing Specific Energy Consumption (SEC) and ensuring product quality in large-scale production environments.

What is the Mechanical Logic of a Rotary Kiln?

A rotary kiln is a pyroprocessing device used to raise materials to a high temperature in a continuous process. Mechanically, it consists of a rotating cylindrical vessel, slightly inclined to the horizontal. The raw material is fed into the upper end of the cylinder, and the rotation—combined with gravity—slowly moves the material toward the lower end where the heat source is typically located.

In industrial-scale production, rotary kilns are favored for bulk granular materials and powders. The tumbling action caused by the rotation ensures that the material is constantly agitated, promoting efficient heat transfer through direct contact with hot gases or the kiln’s refractory lining. This makes the rotary kiln particularly effective for calcination, a process used in cement clinker production, lime burning, and ore roasting.

From a thermal engineering perspective, rotary kilns can be classified as “direct-fired” or “indirect-fired.” Direct-fired systems allow the combustion gases to come into contact with the material, which is ideal for robust materials like cement. Indirect-fired systems use an external heat source to warm the shell, protecting sensitive chemical products from contamination by combustion byproducts.

Understanding the Tunnel Kiln Firing Process

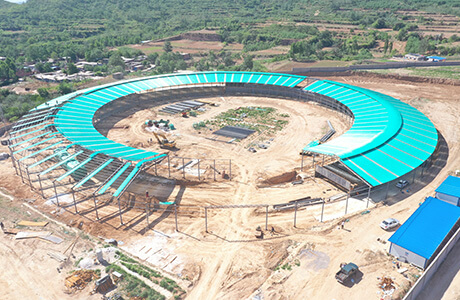

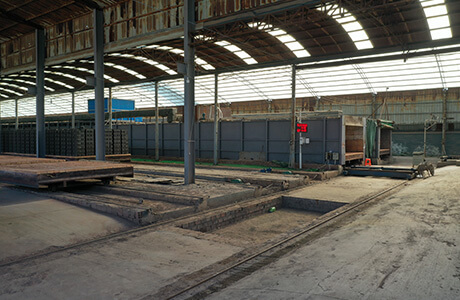

A tunnel kiln is a type of continuous furnace where the material to be fired is passed through a long, stationary tunnel. Unlike the rotating motion of a rotary kiln, the tunnel kiln moves material on “kiln cars” or conveyors through established temperature zones. These zones typically include preheating, firing, and cooling sections.

The stationary nature of the tunnel kiln allows for extreme precision in the firing curve. Because the material—usually shaped products like bricks, roof tiles, or sanitaryware—remains in a fixed position on the kiln car, the thermal stress is managed more predictably. This prevents warping and ensures that every unit achieves the same degree of vitrification.

Modern tunnel kilns are often designed with advanced heat recovery systems. Exhaust heat from the cooling zone is redirected to the preheating zone, significantly reducing the external fuel requirement. This architectural efficiency makes tunnel kilns the gold standard for the heavy clay and ceramic industries where structural integrity and aesthetic consistency are paramount.

Side-by-Side Comparison: Rotary Kiln vs Tunnel Kiln

The following table outlines the technical delta between these two thermal processing technologies:

Material Suitability and Application Scenarios

The “Material State” is the primary decider in any kiln type comparison. If the raw material is a loose mineral or a chemical powder, a tunnel kiln is practically impossible to use because the material would require containment that would hinder heat transfer. Conversely, a rotary kiln would destroy shaped bricks through mechanical tumbling.

Rotary Kiln Scenarios:

• Cement Production: Creating clinker from limestone and clay.
• Metallurgy: Reduction of ores and recovery of volatile metals.
• Waste Incineration: Handling hazardous waste and sludge that requires high-temperature destruction.
• Chemical Calcination: Processing catalysts and chemical salts.

Tunnel Kiln Scenarios:

• Heavy Clay Industry: Producing high-quality face bricks and pavers.
• Refractory Brick Manufacturing: Firing materials designed to withstand future high-heat environments.
• Ceramic Tile Production: Ensuring flat, uniform surfaces across large batches.
• Sanitaryware: Complex shapes like toilets and sinks that require precise cooling to prevent cracking.

Engineering Constraints: Refractories and Maintenance

Both systems require significant capital investment in refractory linings—materials designed to withstand temperatures often exceeding 1,400°C. However, the maintenance logic differs.

In a rotary kiln, the refractory lining is subject to constant mechanical stress from the tumbling material and the “flexing” of the steel shell during rotation. This often leads to localized wear that requires periodic “patching” or complete re-lining of specific zones.

In a tunnel kiln, the main maintenance concern is the kiln cars and the sand seals that prevent heat from escaping into the track system below. Because the tunnel structure itself is stationary, the refractory lining typically has a longer service life than that of a rotary kiln, provided the firing cycle remains consistent.

From a manufacturing consultancy standpoint, the decision must also consider the “Turndown Ratio”—the ability of the kiln to operate efficiently at lower than maximum capacity. Rotary kilns generally handle throughput fluctuations better, whereas tunnel kilns perform best when operated at a steady, continuous state to maintain thermal equilibrium.

FAQ

What is the main difference between a rotary kiln and a tunnel kiln?
The main difference is the material handling. Rotary kilns rotate a cylindrical shell to move granular materials via gravity and tumbling. Tunnel kilns move stationary material (usually on cars) through a fixed tunnel divided into temperature zones.

Which kiln is more energy-efficient?
Generally, tunnel kilns are considered more efficient for shaped products because they can effectively recycle heat from the cooling zone to the preheating zone. However, modern rotary kilns with multi-stage preheaters are also highly efficient for mineral processing.

Can a rotary kiln be used for bricks?
No. The tumbling action of a rotary kiln would break the “green” (unfired) bricks into powder. Bricks require the stationary, linear movement provided by a tunnel kiln to maintain their shape.

What is calcination?
Calcination is a thermal treatment process in the absence of, or limited supply of, air or oxygen to bring about a thermal decomposition. It is the primary process performed in rotary kilns for materials like limestone.

What materials are used for kiln linings?
Both kilns use refractory materials such as firebricks, high-alumina bricks, or castable refractories, depending on the chemical nature of the material being fired and the maximum required temperature.

Reference Sources

• ISO 13579-1: Industrial furnaces and associated processing equipment — Method of measuring energy balance and calculating efficiency.
• The American Ceramic Society (ACerS): Technical whitepapers on continuous firing systems and vitrification.
• CIMAC: Guidelines for the thermal management of large-scale industrial vessels.
• Yaxin Kiln Engineering: Rotary Kiln Technical Specifications & Working Principles.
• ScienceDirect: A Comparative Study on the Heat Transfer Efficiency in Rotary vs Stationary Kilns.
